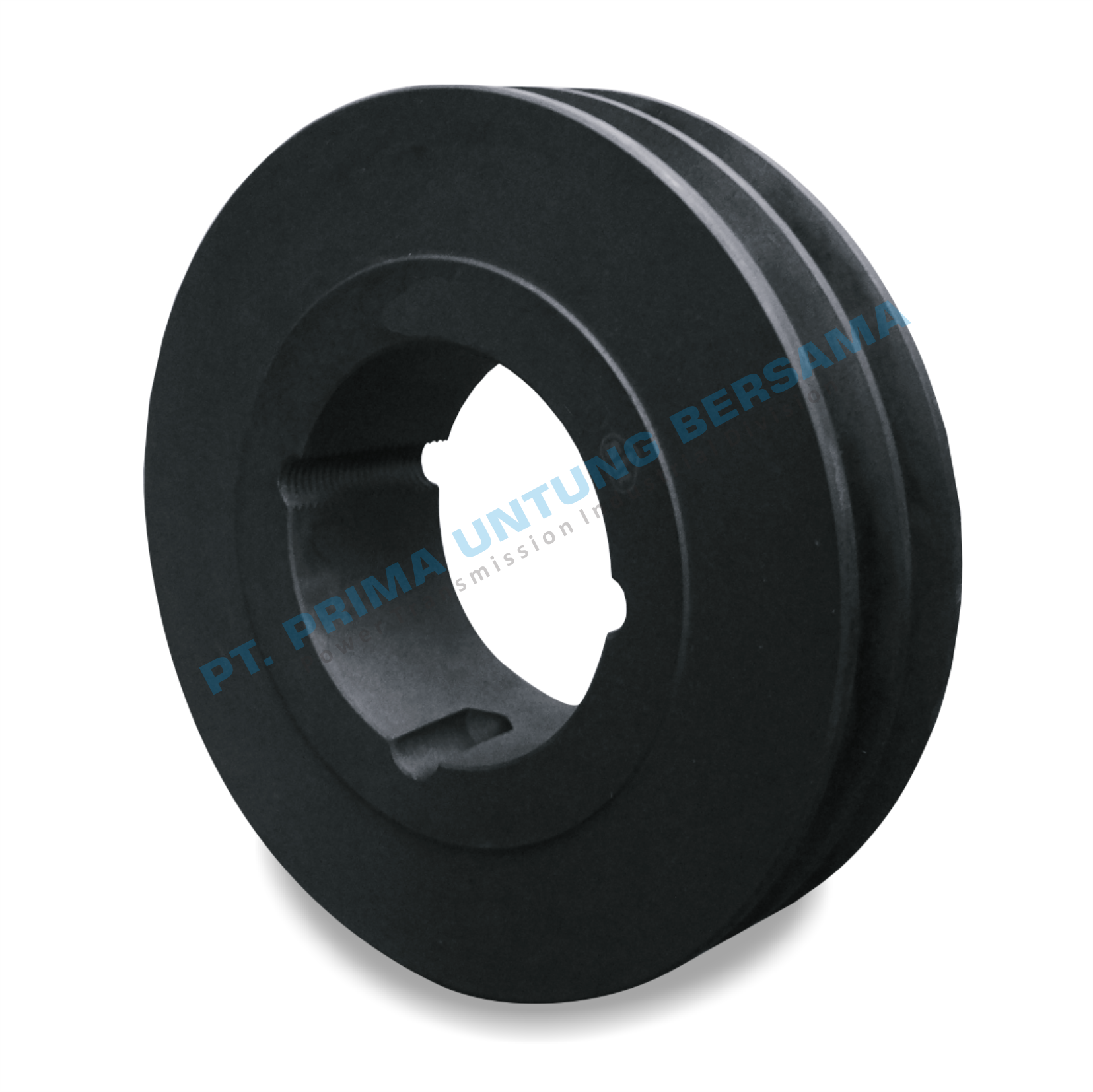

PBT Pulleys - for mounting taper bushing SER-SIT

Material: cast iron DIN 1691 GG-20/GG25

Finishing: protective surface treatment.

V-groove pulleys suitable for use with the following belts:

-SPZ-Z-3V

-SPA-A

-SPB-B-5V

-SPC-C

No description for this product yet.

No description for this product yet.

No description for this product yet.

No description for this product yet.

• TORQUE-FLEX® - Narrow "XP" high performance belts are manufactured in accordance with European standards ISO 4184, DIN 7753 and are approved by API (American Petroleum Institute).
•
• The belt structure guarantees high transmittable power while the moulded cog profile provides higher flexibility with small diameters pulleys.
•
• Here are the product dimension :
• - Section : XPC
• - Belt width : 22 mm
• - High belt : 18 mm
• - Datum length : refer to the last number in every product names, for example : CSXPC1700, so the inside length is 1700 mm,

• TORQUE-FLEX® - Narrow "XP" high performance belts are manufactured in accordance with European standards ISO 4184, DIN 7753 and are approved by API (American Petroleum Institute).
•
• The belt structure guarantees high transmittable power while the moulded cog profile provides higher flexibility with small diameters pulleys.
•
• Here are the product dimension :
• - Section : XPZ
• - Belt width : 10 mm
• - High belt : 8 mm
• - Datum length : refer to the last number in every product names, for example : CSXPZ512, so the datum length is 512 mm,

• TORQUE-FLEX® - Classical high performance belts are manufactured in accordance with European standards ISO 4184 and DIN 7753.
•
• Designed for operating at high speeds over small diameter pulleys and short center distances. Also for use in multiple v-belt drives where high shock load and heavy-duty loads are encountered; compressors, industrial fans, textile machinery, woodworking machinery, and construction equipment.
•
• Here are the product dimensions :
• - Section : BX
• - Belt width : 17 mm
• - High belt : 11 mm
• - Inside length : refer to the last number in every product names, for example : CTBX100, so the inside length is 100 inches.

• SIT - WEDGE belts are manufactured in accordance with American standards RMA and MPTA. Available in two different ranges :
• - MC range (Raw Edge and Moulded Cog) : up to 2995 mm length
• - E range (Envelope) : over 2995 mm length.
•
• The product size
• For example, CW5V1000
• - 5V = Section, with belt width 16 mm and high belt 13 mm
• - 1000 = Effective length x 10 (inches)

• SIT EXCELITE® ES - Narrow V-Belts are manufactured in accordance with ISO 4184 -and DIN 7753.
•
• Our high performance narrow v-belts have been specially designed for heavy-duty applications to deliver up to 50% more power than classical v-belts. Can be used in a wide range of industrial and agricultural fields such as compressor, fans, pumps and the other heavy-duty equipment.
•
• Here are the product dimension :
• - Belt width : 13 mm
• - High belt : 10 mm
• - Inside length : refer to the last number in every product names, for example : CLSPA1000, so the inside length is 1000 mm.

No description for this product yet.

No description for this product yet.

No description for this product yet.

• The CLASSICA® synchronous belt, being designed with imperial pitch, is a valid and economical altenative solution in low/medium torque transmission systems.
•
• Reduced elongation, no need of lubrication and low wearing makes this belt an economic and reliable option.
•
• How to measure the size of a product :
• For example, CD210L075
• - 210 = pitch length x 10 (inches)
• - L = pitch
• - 75 = belt width x 100 (inches)

No description for this product yet.

No description for this product yet.

No description for this product yet.

• TOP DRIVE® HTD belt is an evolution of standard positive drive belts. The tooth shape is the HTD profile according to ISO 13050.
•
• This profile has been used for many years in a wide range of applications and it is well known for its outstanding performances. Power transmission is much higher compared to the classic inch trapezodial profile.
•
• The circular-arc tooth provides superior tooth jump resistance and provides a smooth tooth engagement. The noise level is remarkably reduced if compared to the classic trapezodial belts.
•
• How to measure the size of a product :
• For example, CHD1064-8M20
• - 1640 = pitch length (mm)
• - 8M = pitch
• - 20 = belt width (mm)

• Type of belt : S 14M
• Pitch :  14 mm
• Pitch diameter : 126.44 mm
• Outside diameter + flange : 134 mm
• Teeth : 29
• Belt width : refer to the last number in every product name. (example : ST29-S14M115, so the belt width is 115 mm)
• Type of pulley : 1
• Material : Cast iron
• Flange : With flanges

• Locking elements consist of one internal and one external tapered rings. They are designed to work in combination with a clamp flange which can be bolted on a hub or shaft depending on application need.
•
• Here are the dimensions of product :
• Inner Diameter : refer to numbers writen after "F" in every product name. For example, CAL2F10/13; so, the inner diameter is 10 mm.
• Outside Diameter : refer to the last number in every product name. For example, CAL2F10/13; so, the outside diameter is 13 mm.
• Width : 7 mm

• SIT-LOCK® 8 has a very small axial dimension, is self centering and has been designed to suit various shaft diameters although the overall dimensions are the same. SIT-LOCK® 8 is recommended for applications with medium torques which need a good axial positioning. The limited number of screws make the installation fast.
•
• For the dimension of the product, please download the catalog in the document section.

• Taper Bush : 3020
• Shaft Diameter Range : 25 - 75 mm
• Pitch Diameter : 560 mm
• Outside Diameter : 565.6 mm
• Groove : 3
