Sprocket for chain according to DIN 8187 - ISO/R 606
De : External Diameter mm
Dp : Pitch Diameter mm
Dm : Hub Diameter mm
W : Weight kg
Sprocket for chain according to DIN 8187 - ISO/R 606
De : External Diameter mm
Dp : Pitch Diameter mm
Dm : Hub Diameter mm
W : Weight kg
Dimensions in milimeters:
Keyways are British Standard Metric B S 4235. Part 1: 1972 DIN 6885 and conform to ISO recomendations with the exception of those marked, which are shallower. Where a key is to be used it should be parallel and side fitting, with top clearance. Depth of keyway is measured at the CENTRE
.png)

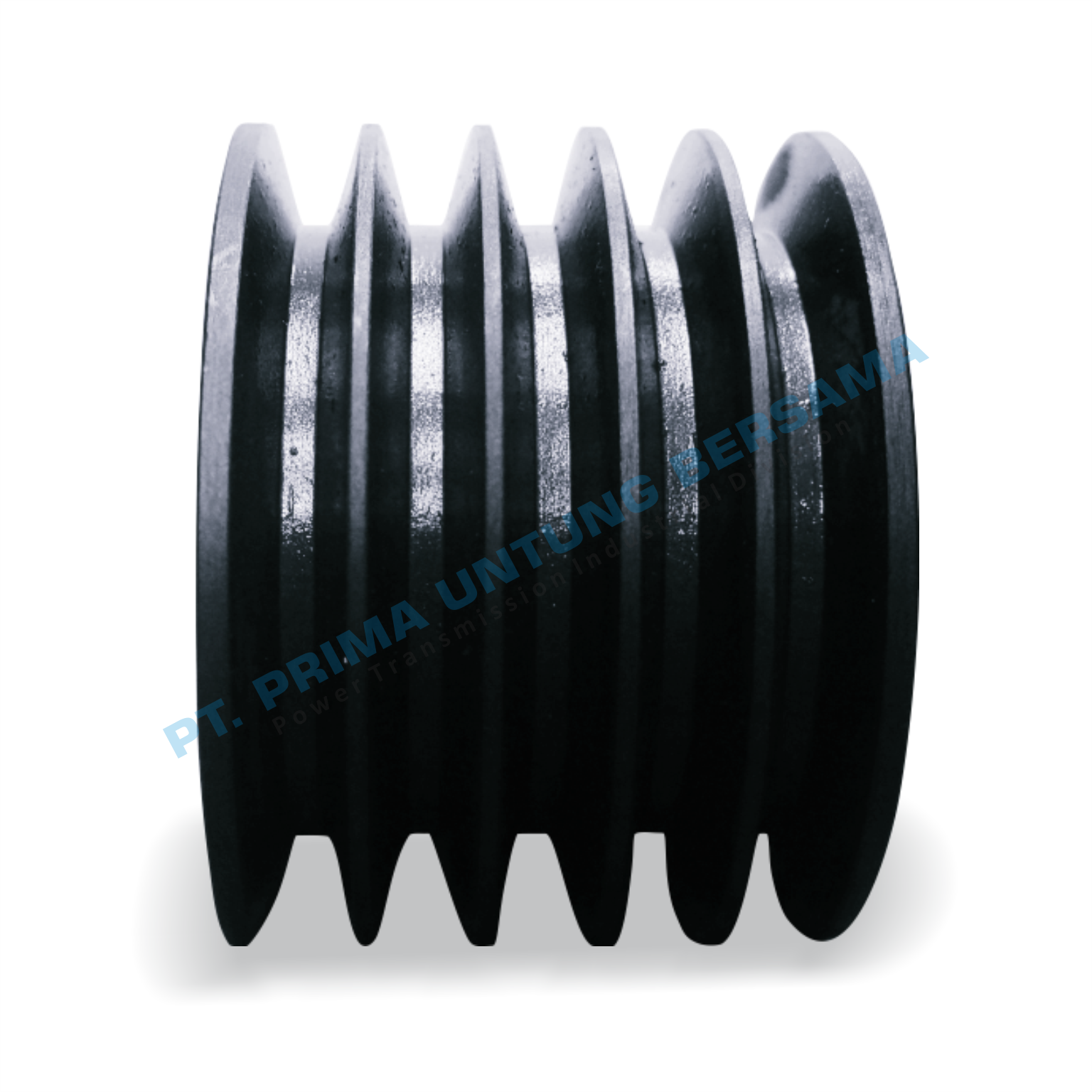

- Taper Bush : 3535
- Shaft Diameter Range : 55 - 100 mm
- Pitch Diameter : 500 mm
- Outside Diameter : 509.6 mm
- Groove : 4
.png)
- Taper Bush : 2012
- Shaft Diameter Range : 15 - 50 mm
- Pitch Diameter : 200 mm
- Outside Diameter : 205.6 mm
- Groove : 1
- SITEX® gear couplings consist of two toothed hubs which are connected with one internally toothed sleeve. The sleeve is manufactured from stabilized 6.6 superpolyamide resin.
- The torsional rigidity of the sleeve prevents angular speed variation. The combination of steel hubs with polyamide sleeve makes the coupling maintenance and lubrication free.
- The particular toothed profile prevents contact of tooth edged with the sleeve, ensuring long life of the coupling.
- Here are the dimensions of product :
- Outside diameter : 142 mm
- Length : 73 mm
.png)
- Taper Bush : 2517
- Shaft Diameter Range : 18 - 65 mm
- Pitch Diameter : 236 mm
- Outside Diameter : 241.6 mm
- Groove : 3
.jpg)
- Type of belt : T5
- Pitch : 5 mm
- Pitch diameter : 27.80 mm
- Outside diameter + flange: 30 mm
- Teeth : 18
- Belt width : 10 mm
- Type of pulley : 2
- Material : Aluminium
.png)
- Type of belt : T10
- Pitch : 10 mm
- Pitch diameter : 80.90 mm
- Outside diameter + flange: 88 mm
- Teeth : 26
- Belt width : 16 mm
- Type of pulley : 2
- Material : Aluminium
Sprocket for chain according to DIN 8187 - ISO/R 606
De : External Diameter mm
Dp : Pitch Diameter mm
Dm : Hub Diameter mm
W : Weight kg
Sprocket for chain according to DIN 8187 - ISO/R 606
De : External Diameter mm
Dp : Pitch Diameter mm
Dm : Hub Diameter mm
W : Weight kg
- HTD pulleys have a different design from the traditional toothed pulleys. The axial grooves are designed to allow the beltteeth to catch the pulley teeth with negligible triction. HTD Pulleys are available with full hub and for assembly with SER-SIT taper bushing.
- Product detail :
- Type of belt : 8 M
- Pitch : 8 mm
- Pitch diameter : 120.86 mm
- Outside diameter + flange : 129 mm
- Teeth : 48
- Type of bush : 2012
- Belt width : 20 mm
- Type of pulley :1
- Material : Cast iron
- Flange : With flanges
Sprocket for chain according to DIN 8187 - ISO/R 606
De : External Diameter mm
Dp : Pitch Diameter mm
Dm : Hub Diameter mm
W : Weight kg
Sprocket for chain according to DIN 8187 - ISO/R 606
De : External Diameter mm
Dp : Pitch Diameter mm
Dm : Hub Diameter mm
W : Weight kg
- SIT-LOCK® 8 has a very small axial dimension, is self centering and has been designed to suit various shaft diameters although the overall dimensions are the same. SIT-LOCK® 8 is recommended for applications with medium torques which need a good axial positioning. The limited number of screws make the installation fast.
- For the dimension of the product, please download the catalog in the document section.
