• Taper Bush : 3020
• Shaft Diameter Range : 25 - 75 mm
• Pitch Diameter : 224 mm
• Outside Diameter : 233.6 mm
• Groove : 3

• Taper Bush : 1610
• Shaft Diameter Range : 12 - 42 mm
• Pitch Diameter : 125 mm
• Outside Diameter : 129 mm
• Groove : 2

• Taper Bush : 2012
• Shaft Diameter Range : 15 - 50 mm
• Pitch Diameter : 140 mm
• Outside Diameter : 145.6 mm
• Groove : 2

• Taper Bush : 2517
• Shaft Diameter Range : 18 - 65 mm
• Pitch Diameter : 150 mm
• Outside Diameter : 155.6 mm
• Groove : 3

• Type of belt : 5 M
• Pitch : 5 mm
• Pitch diameter : 56.16 mm
• Outside diameter + flange : 62 mm
• Teeth : 36
• Belt width : 25 mm
• Type of pulley : 1
• Material : Steel
• Flange : With flanges

• Type of belt : H
• Pitch : 12.700 mm
• Pitch diameter : 79.48 mm
• Outside diameter + flange: 88 mm
• Teeth : 20
• Type of bush : 1210; max bore : 32 mm
• Belt width : 1.50 inch
• Type of pulley : 4
• Material : Cast iron
• Flange : With flange

• Type of belt : H
• Pitch : 12700 mm
• Pitch diameter : 95.65 mm
• Outside diameter + flange: 104 mm
• Teeth : 24
• Type of bush : 1610; max bore : 42 mm
• Belt width : 1.50 inch
• Type of pulley : 4
• Material : Cast iron
• Flange : With flange

• Type of belt : H
• Pitch : 12700 mm
• Pitch diameter : 144.16 mm
• Outside diameter + flange: 151 mm
• Teeth : 36
• Type of bush : 1610; max bore : 42 mm
• Belt width : 1.50 inch
• Type of pulley : 8
• Material : Cast iron
• Flange : With flanges

Dimensions in milimeters:

Keyways are British Standard Metric B S 4235. Part 1: 1972 DIN 6885 and conform to ISO recomendations with the exception of those marked, which are shallower. Where a key is to be used it should be parallel and side fitting, with top clearance. Depth of keyway is measured at the CENTRE

• SITEX® gear couplings consist of two toothed hubs which are connected with one internally toothed sleeve. The sleeve is manufactured from stabilized 6.6 superpolyamide resin.
•
• The torsional rigidity of the sleeve prevents angular speed variation. The combination of steel hubs with polyamide sleeve makes the coupling maintenance and lubrication free.
•
• The particular toothed profile prevents contact of tooth edged with the sleeve, ensuring long life of the coupling.
•
• Here are the dimensions of product :
• Outside diameter : 92 mm
• Length : 51 mm

• TRASCO® ES is our zero backlash coupling designed to compensate for misalignment and vibration dampening for indexing applications. The compact design of TRASCO® ES makes it the right choice for all precise motion applications.
•
• The TRASCO ES consist of two hubs, which are either made of high-strength aluminium (up to the 38/45 size) or steel (from size 42) that are connected with an elastic element.
•
• Spider detail
• Color : Yellow
• Shore : 92 Sh.A
• Compound : Polyurethane
• Admissible Temperature [°C] :the range is between -40 and +90°C

• Type of belt : 8 M
• Pitch : 8 mm
• Pitch diameter : 69.93 mm
• Outside diameter + flange : 77 mm
• Teeth : 28
• Belt width : 20 mm
• Type of pulley : 1
• Material : Steel
• Flange : With flanges

No description for this product yet.

No description for this product yet.

No description for this product yet.

No description for this product yet.

No description for this product yet.

No description for this product yet.

No description for this product yet.

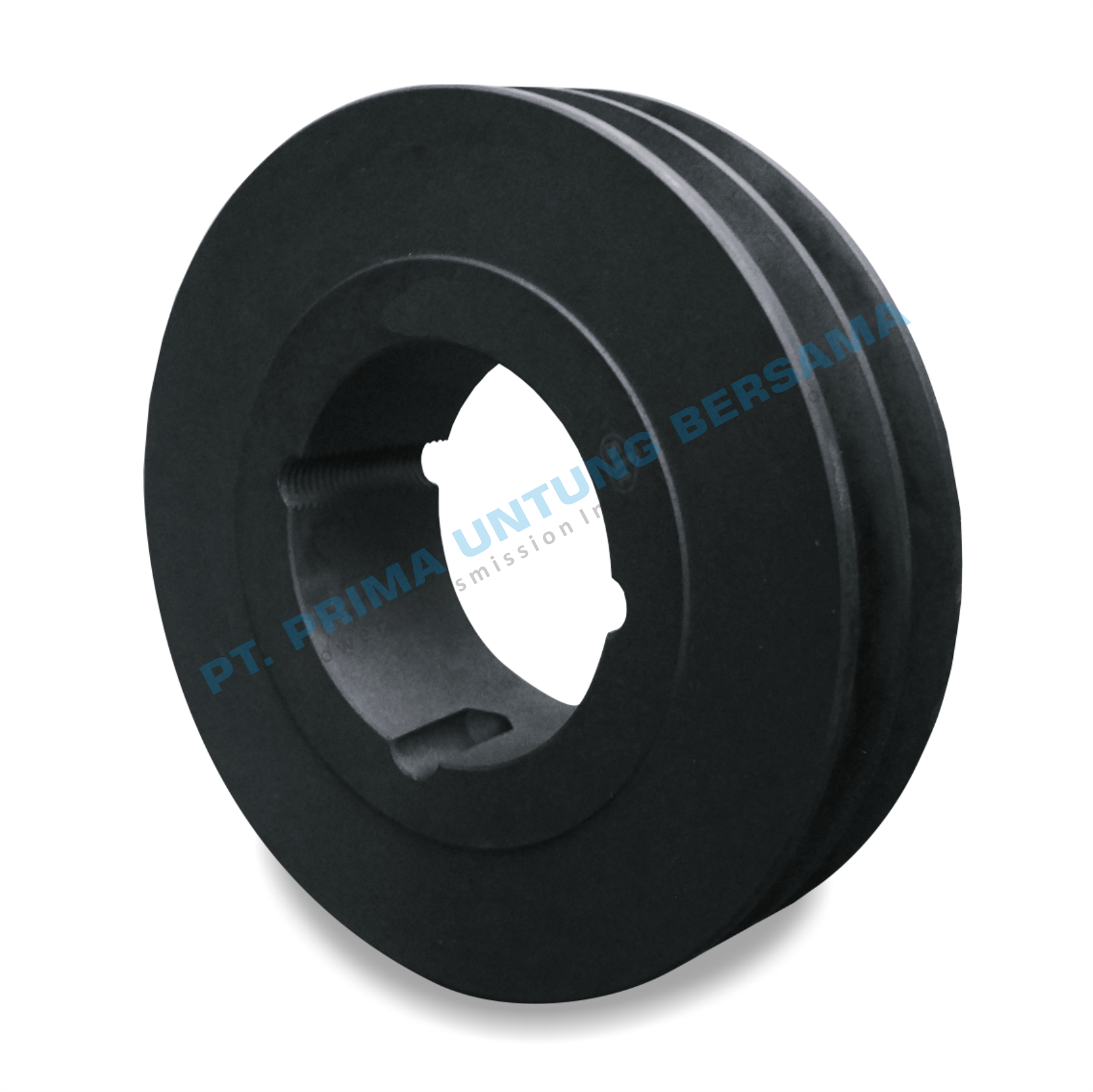

• Taper Bush : 2012
• Shaft Diameter Range : 15 - 50 mm
• Pitch Diameter : 170 mm
• Outside Diameter : 177 mm
• Groove : 2

• TRASCO flexible couplings is the flexible and omocinetic coupling that assures the best performance in relation to the physical space occupied in its class. It has a very compact design and allows safe power transmision by absorbing peak loads and torsional vibrations.
•
• Product detail
• Outside diameter : 55 mm
• Max bore : 24 mm
• Material : Aluminium, die-casting
•
• Approved according to EC standard ATEX 94/9/EC

No description for this product yet.
